Name: Customized Touch Screen 10.1 Inch | Air Bonding
Brand: Ever Glory
Price: 40.00 USD
Availability: InStock

Description

Specifications:

Touch Panel P/N	EG-10.1-A-1610V1
Display P/N	TM101JDHG30_V2.0
Screen Diagonal	10.1/16:10
Cover Outline Dimension	246.96*165.6mm
Touch Panel View Area	216.96*135.6mm
Touch Panel Active Area	217.96*136.6mm
Touch Panel Thickness	2.75mm
Display Outline Dimension	213.22*150.6mm
Display Active Area	216.96*135.6mm
Display Thickness	4.4mm
Total Thickness	7.65mm
Cover surface hardness	≥6H
Impact resistance	≥IK07

How to improve poor visibility under strong light?
1.Abandoning the conventional brightness of 200–500 nits, this product is equipped with a 1000 nits industrial high-brightness backlight as standard. Its brightness far exceeds the ambient light intensity of natural sunlight, so the display will not be overwhelmed under direct sunlight, delivering a transparent and non-whitening picture.

2.Instead of the traditional frame-bonding structure with an air gap, we adopt optical adhesive full lamination. This reduces inter-layer light loss and diffuse reflection, improves light transmittance efficiency, and greatly enhances visibility under the same backlight brightness.

3.The cover glass is treated with AG anti-glare frosted finishing to scatter specular reflection. Coupled with an AR anti-reflective coating, it reduces reflectivity and improves light transmittance, effectively solving screen whitening and blurring issues under strong light.

4.We use industrial panels with high black level and high contrast ratio, which maintain dark color levels under strong light, prevent the screen from turning grayish-white and losing details, and ensure text and icons remain sharp and legible.

How to Improve the Stability of Touch Experience？

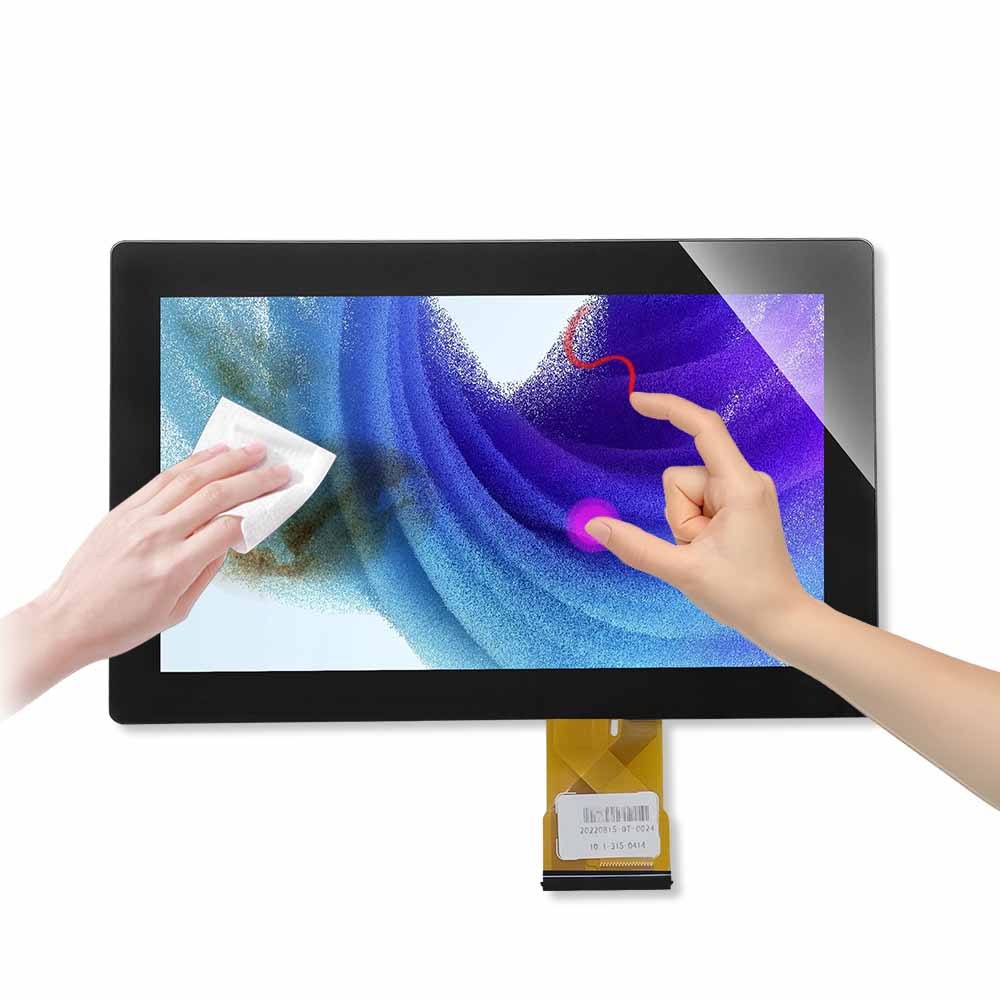

1.It adopts an industrial-grade professional touch chip with built-in rain suppression and water film filtering algorithms, which can automatically identify raindrops and continuous water stains, block false touches, lock valid finger touch points, and ensure no drift or jump.

2.The surface is coated with an AF oleophobic and hydrophobic layer, making water droplets roll off in a spherical shape without spreading into a continuous water film. It fundamentally reduces the formation of conductive water film and avoids chaotic touch signals.

3.Add grounded shielding to the touch bezel and adopt a layered insulation design, suppressing electromagnetic interference caused by moisture and rainwater to stabilize the touch sensing signal.

4.Built-in wet-hand / rainy-day touch mode, which adaptively lowers sensitivity and optimizes sampling filtering. It filters water stain noise and only recognizes real human pressing operations.

FAQ
1.Can the touch screen work stably in rainy or wet conditions?
Yes. It has a built-in rain suppression algorithm and wet-hand/rainy-day touch mode, which can automatically filter water interference and avoid false touches.

2.Will water stains or raindrops cause wrong touches or drift?
No. The AF hydrophobic coating prevents water from forming a conductive film, and the touch chip filters out water noise to ensure accurate and stable response.

3.Does it support gloved or wet hand operation?
Yes. The industrial touch algorithm supports stable recognition with wet hands or gloves, without unresponsiveness or misoperation.

4.How does it avoid electromagnetic interference in harsh environments?
It uses grounded touch bezel shielding and layered insulation design, effectively suppressing EMI and keeping the touch signal stable.

5.What ensures long-term touch stability outdoors?
Industrial-grade touch IC, wide-temperature components, and anti-interference design ensure no jumping, stuck points, or crashes even in high/low temperature outdoor environments.
